Applications
These cables, which can be processed automatically by robots, ensure maximum productivity. They are suitable for luminaire wiring and can be processed reliably and without problems.
These single cores with heat resistant PFA insulation also offer a high temperature resistance. In addition to the luminaire wiring, the cables are also suitable as highly flexible device connection cables.
Characteristics
- Halogen-free and flame-retardant PUR cable with UL Style 20549
- Manual stripping up to 150 cm in one working step
- Suitable for powerful high-temperature water jets (IPX9K)
- Good chemical resistance to oils, coolants and lubricants
- Resistant to sea water based on UL 1309
- Resistant to hydrolysis and microbes
- Flame retardant according to DIN EN / IEC 60332-2-2 / CSA FT2
- Halogen-free according to DIN VDE 0472, part 815 / IEC 60754-1
- Drag chain
- Number of bending cycles ≥ 5 million
- distance ≥ 5 m
- speed ≥ 3.3 m / sec
- acceleration 5 m / sec²
- torsion
- torsion load ± 360 ° / m
- torsion cycles ≥ 1 million
- torsion speed 30 cycles / min
- LABS-free
- RoHS and REACH compliant

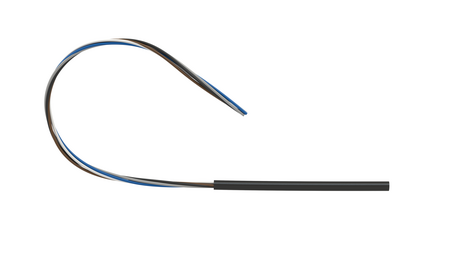

Sensor cables flexible and dynamic use, suitable for manual processing
| Coroflex | CORES | CORE | OUTER SHEATH | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | |||
|---|---|---|---|---|---|---|---|---|
| TYPE NO. | NO. | SIZE | DIAMETER [mm] | DIAMETER [mm] | CONDUCTOR [mΩ/m] | approx. [g/m] | ||
| 29-1100 | 2 x | 0.25 mm² | 1.15 | ± 0.05 | 4.00 | ± 0.2 | 77.5 | 18 |
| 29-1100 | 3 x | 0.25 mm² | 1.15 | ± 0.05 | 4.15 | ± 0.2 | 77.5 | 21 |
| 29-1100 | 4 x | 0.25 mm² | 1.15 | ± 0.05 | 4.40 | ± 0.2 | 77.5 | 25 |
| 29-1100 | 5 x | 0.25 mm² | 1.15 | ± 0.05 | 4.80 | ± 0.2 | 77.5 | 30 |
| 29-1100 | 6 x | 0.25 mm² | 1.15 | ± 0.05 | 5.10 | ± 0.2 | 77.5 | 33 |
| 29-1100 | 7 x | 0.25 mm² | 1.15 | ± 0.05 | 5.50 | ± 0.2 | 77.5 | 38 |
| 29-1100 | 8 x | 0.25 mm² | 1.15 | ± 0.05 | 6.00 | ± 0.2 | 77.5 | 45 |
| 29-1100 | 9 x | 0.25 mm² | 1.15 | ± 0.05 | 6.30 | ± 0.2 | 77.5 | 47 |
| 29-1100 | 10 x | 0.25 mm² | 1.15 | ± 0.05 | 6.30 | ± 0.2 | 77.5 | 52 |
| 29-1100 | 12 x | 0.25 mm² | 1.15 | ± 0.05 | 6.90 | ± 0.2 | 77.5 | 61 |
| 29-1100 | 14 x | 0.25 mm² | 1.15 | ± 0.05 | 7.00 | ± 0.2 | 77.5 | 66 |
| 29-1100 | 2 x | 0.34 mm² | 1.30 | ± 0.05 | 4.30 | ± 0.2 | 54.3 | 21 |
| 29-1100 | 3 x | 0.34 mm² | 1.30 | ± 0.05 | 4.30 | ± 0.2 | 54.3 | 25 |
| 29-1100 | 4 x | 0.34 mm² | 1.30 | ± 0.05 | 4.70 | ± 0.2 | 54.3 | 30 |
| 29-1100 | 5 x | 0.34 mm² | 1.30 | ± 0.05 | 5.20 | ± 0.2 | 54.3 | 37 |
| 29-1100 | 6 x | 0.34 mm² | 1.30 | ± 0.05 | 5.60 | ± 0.2 | 54.3 | 42 |
| 29-1100 | 7 x | 0.34 mm² | 1.30 | ± 0.05 | 6.20 | ± 0.2 | 54.3 | 50 |
| 29-1100 | 8 x | 0.34 mm² | 1.30 | ± 0.05 | 6.50 | ± 0.2 | 54.3 | 54 |
| 29-1100 | 9 x | 0.34 mm² | 1.30 | ± 0.05 | 7.00 | ± 0.2 | 54.3 | 60 |
| 29-1100 | 10 x | 0.34 mm² | 1.30 | ± 0.05 | 7.00 | ± 0.2 | 54.3 | 66 |
| 29-1100 | 12 x | 0.34 mm² | 1.30 | ± 0.05 | 7.30 | ± 0.2 | 54.3 | 73 |
| 29-1100 | 14 x | 0.34 mm² | 1.30 | ± 0.05 | 7.80 | ± 0.2 | 54.3 | 85 |
