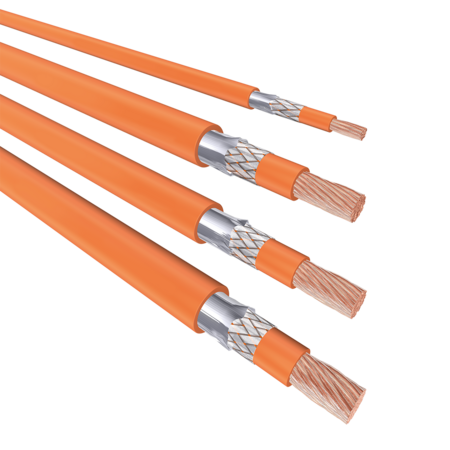

Shielded copper high voltage cables for hybrid and battery vehicles.
Conductor cross-sections can be optimized thanks to our Coroflex high-voltage cables - because they are suitable for rated voltages of up to 600 volts a.c. / 1,000 volts d.c. and withstand temperatures of up to 180 °C. With our simulation capabilities, we are able to calculate conductor heating as a function of current loads and operating ambient temperatures. Our derating simulations enable you to define your optimum conductor cross-sections - and thus reduce weight, packaging space and costs.
Characteristics
- Low Bending Radii
- Reliable Insulation Resistance
- Excellent Sealing Properties
- Talc-free Surfaces
- High Performance Silicone
- Weight Saving Potentials
High-voltage Copper Cables, Single-Core, Shielded
| Coroflex | CORES | CORE | OUTER SHEATH | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | ||||
|---|---|---|---|---|---|---|---|---|---|
| TYPE NO. | NO. | SIZE | DIAMETER [mm] | DIAMETER [mm] | CONDUCTOR [mΩ/m] | SCREEN [mΩ/m] | approx. [g/m] | ||
| 9-2611 | 1 x | 4.0 mm² | 3.70 | -0.3 | 5.80 | -0.5 | 4.71 | 13.8 | 70 |
| 9-2611 | 1 x | 6.0 mm² | 4.30 | -0.3 | 6.50 | -0.5 | 3.14 | 11.2 | 96 |
| 9-2611 | 1 x | 10 mm² | 6.00 | -0.6 | 8.80 | -0.6 | 1.82 | 9.1 | 161 |
| 9-2611 | 1 x | 12 mm² | 6.50 | -0.6 | 9.50 | -0.6 | 1.52 | 7.7 | 187 |
| 9-2611 | 1 x | 16 mm² | 7.20 | -0.6 | 10.20 | -0.6 | 1.16 | 7.6 | 221 |
| 9-2611 | 1 x | 20 mm² | 7.80 | -0.6 | 11.00 | -0.6 | 0.955 | 6.6 | 273 |
| 9-2611 | 1 x | 25 mm² | 8.80 | -0.6 | 12.20 | -0.6 | 0.743 | 4.4 | 345 |
| 9-2611 | 1 x | 30 mm² | 9.60 | -0.7 | 13.40 | -0.6 | 0.647 | 3.8 | 415 |
| 9-2611 | 1 x | 35 mm² | 10.50 | -0.7 | 14.40 | -0.6 | 0.527 | 3.8 | 485 |
| 9-2611 | 1 x | 40 mm² | 11.10 | -0.7 | 15.00 | -0.6 | 0.473 | 3.3 | 551 |
| 9-2611 | 1 x | 50 mm² | 12.20 | -0.7 | 15.80 | -0.6 | 0.368 | 3.7 | 630 |
| 9-2611 | 1 x | 60 mm² | 13.30 | -1.2 | 16.90 | -0.6 | 0.315 | 3.0 | 740 |
| 9-2611 | 1 x | 70 mm² | 14.40 | -1.4 | 18.20 | -0.8 | 0.259 | 2.7 | 880 |
| 9-2611 | 1 x | 85 mm² | 15.80 | -1.4 | 19.80 | -0.8 | 0.219 | 2.7 | 1030 |
| 9-2611 | 1 x | 95 mm² | 17.20 | -1.4 | 20.90 | -0.8 | 0.196 | 1.9 | 1150 |
| 9-2621 | 1 x | 120 mm² | 19.00 | -1.4 | 23.00 | -0.8 | 0.153 | 1.7 | 1455 |
