Applications
These cables, which can be processed automatically by robots, ensure maximum productivity. They are suitable for luminaire wiring and can be processed reliably and without problems.

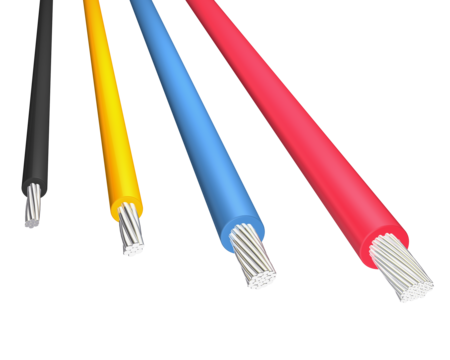

These single cores with heat resistant FEP insulation also offer a high temperature resistance. In addition to the luminaire wiring, the cables are also suitable as highly flexible device connection cables.
Characteristics
- Suitable for higher operating temperatures up to 180 °C
- VDE surveillance report REG No. 2536
- Good resistance to oils and chemicals
- RoHS and REACH compliant
Cables with high temperature resistant insulation materials
| Coroflex | CORES | CORE | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | ||
|---|---|---|---|---|---|---|
| TYPE NO. | NO. | SIZE | DIAMETER [mm] | CONDUCTOR [mΩ/m] | approx. [g/m] | |
| 18-1120 | 1 x | 0.50 mm² | 1.55 | ± 0.15 | 40.1 | 7 |
| 18-1120 | 1 x | 0.75 mm² | 1.75 | ± 0.15 | 26.7 | 9 |
| 18-1120 | 1 x | 1.0 mm² | 1.90 | ± 0.15 | 20.0 | 12 |
| 18-1120 | 1 x | 1.5 mm² | 2.15 | ± 0.15 | 13.7 | 16 |
| 18-1120 | 1 x | 2.5 mm² | 2.70 | ± 0.15 | 8.2 | 25 |
| 18-1120 | 1 x | 4.0 mm² | 3.35 | ± 0.15 | 5.1 | 40 |
