Applications
These cables, which can be processed automatically by robots, ensure maximum productivity. They are suitable for luminaire wiring and can be processed reliably and without problems.
Because of the use of heat resistant FEP core insulation and silicone sheath insulation these cables offer a high temperature resistance. In addition to the luminaire wiring, the cables are also suitable as highly flexible device connection cables.
Characteristics
- Suitable for higher operating temperatures
- Design according to VDE, UL / CSA, cURus possible
- Good resistance to oils and chemicals
- RoHS and REACH compliant

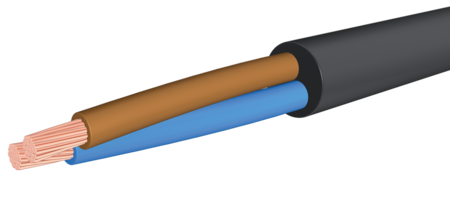

Cables with high temperature resistant insulation materials
| Coroflex | CORES | CORE | OUTER SHEATH | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | |||
|---|---|---|---|---|---|---|---|---|
| TYPE NO. | NO. | SIZE | DIAMETER [mm] | DIAMETER [mm] | CONDUCTOR [mΩ/m] | approx. [g/m] | ||
| 18-4514 | 2 x | 0.22 mm² | 1.10 | ± 0.15 | 4.20 | ± 0.15 | 83.4 | 24 |
| 18-4514 | 2 x | 0.34 mm² | 1.25 | ± 0.15 | 4.60 | ± 0.15 | 55.5 | 29 |
