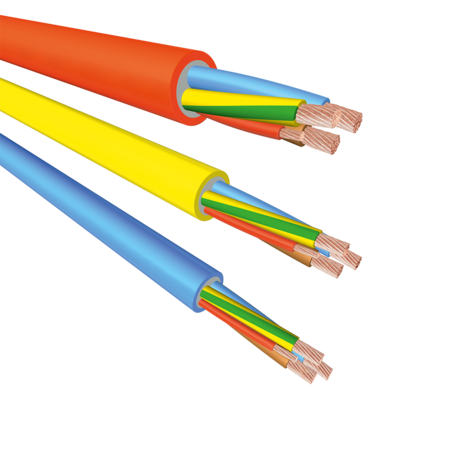

These PUR sheathed cables are essential for the connection between an external charging station and the road vehicle. The cables meet extremely high requirements in terms of mechanical strength and electrical safety.
In addition to the special power cores for the power supply, the pilot cores ensure communication between the road vehicle and the charging electronics. The cable designs are highly flexible in accordance with the usual automotive requirements and have good resistance to microbes and media. The cables are flame-retardant according to DIN EN 60332-1-2. In addition to standard qualities, special versions with tinned copper wires or for specific applications such as cable spoolers or spiral cables can be produced by request.
Coroflex | CORES | PILOT CORES | CORE | OUTER SHEATH | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | ||||
---|---|---|---|---|---|---|---|---|---|---|
TYPE NO. | NO. | SIZE | NO. | SIZE | DIAMETER [mm] | DIAMETER [mm] | CONDUCTOR [mΩ/m] | approx. [g/m] | ||
8-2752 | 3 x | 1.5 mm² | 1 x | 0.50 mm² | 3.15 | ± 0.2 | 9.00 | ± 0.4 | 13.3 | 103 |
8-2752 | 3 x | 1.5 mm² | 2 x | 0.50 mm² | 3.15 | ± 0.2 | 9.00 | ± 0.4 | 13.3 | 104 |
8-2752 | 5 x | 2.5 mm² | 1 x | 0.50 mm² | 3.80 | ± 0.2 | 13.00 | ± 0.4 | 7.98 | 227 |
8-2752 | 5 x | 2.5 mm² | 2 x | 0.50 mm² | 3.80 | ± 0.2 | 13.00 | ± 0.4 | 7.98 | 227 |
8-2752 | 3 x | 2.5 mm² | 1 x | 0.50 mm² | 3.80 | ± 0.2 | 10.50 | ± 0.4 | 7.98 | 149 |
8-2752 | 3 x | 2.5 mm² | 2 x | 0.50 mm² | 3.80 | ± 0.2 | 10.50 | ± 0.4 | 7.98 | 150 |
8-2752 | 3 x | 2.5 mm² | 1 x | 0.75 mm² | 3.80 | ± 0.2 | 11.20 | ± 0.4 | 7.98 | 166 |
8-2752 | 3 x | 2.5 mm² | 2 x | 0.75 mm² | 3.80 | ± 0.2 | 11.20 | ± 0.4 | 7.98 | 165 |
8-2752 | 5 x | 6.0 mm² | 1 x | 0.50 mm² | 5.00 | ± 0.2 | 17.10 | ± 0.5 | 3.3 | 459 |
8-2752 | 5 x | 6.0 mm² | 2 x | 0.50 mm² | 5.00 | ± 0.2 | 17.10 | ± 0.5 | 3.3 | 459 |
8-2752 | 3 x | 6.0 mm² | 1 x | 0.50 mm² | 5.00 | ± 0.2 | 13.90 | ± 0.4 | 3.3 | 298 |
8-2752 | 3 x | 6.0 mm² | 2 x | 0.50 mm² | 5.00 | ± 0.2 | 13.90 | ± 0.4 | 3.3 | 300 |
