COROFLEX FOOD BASIC COROFLEX FOOD BASIC 3300 - Li31Y31Y

FDA-compliant data and connection cables with ECOLAB and IPA certificates for the food industry.
contact

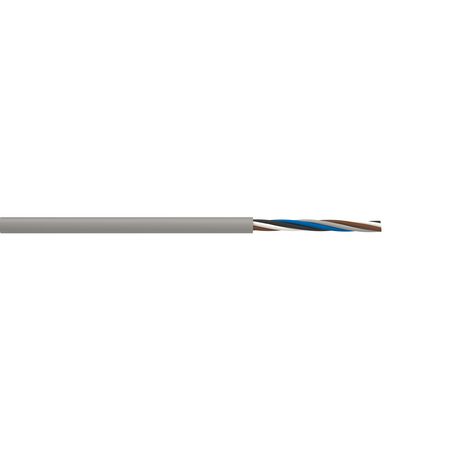

product image: COROFLEX FOOD BASIC 3300 - Li31Y31Y

Applications

These data and connection cables with ECOLAB and IPA certificates are suitable for components from automation technology (examples: sensors, actuators and connectors), especially for manufacture systems for the production of food products. The sheath of these cables was specially developed for high resistance to cleaning media. As a result, these cables can be used in production areas that are subject to mechanically and thermally demanding cleaning processes (high-pressure cleaners).

Characteristics

  • Suitable for powerful high-temperature water jets (IPX9K)
  • Useable for higher operating temperatures
  • Very good chemical resistance to aggressive cleaning agents
  • Great cleanability of the cables according to VDMA 12/2007
  • Flame-retardant according to DIN EN 60332-1-2
  • Suitable for mechanical requirements in energy drag chains and moving drives
  • RoHS and REACH compliant
  • LABS free

Germ-repellent cables for the food industry

Coroflex CORES CORE OUTER SHEATH RESISTANCE (d.c. 20 °C) (max.) CABLE WEIGHT
TYPE NO. NO. SIZE DIAMETER [mm] DIAMETER [mm] CONDUCTOR [mΩ/m] approx. [g/m]
29-3300 2 x 0.25 mm² 1.15 ± 0.05 4.00 ± 0.2 77.5 16
29-3300 3 x 0.25 mm² 1.15 ± 0.05 4.10 ± 0.2 77.5 18
29-3300 4 x 0.25 mm² 1.15 ± 0.05 4.40 ± 0.2 77.5 22
29-3300 5 x 0.25 mm² 1.15 ± 0.05 4.80 ± 0.2 77.5 27
29-3300 6 x 0.25 mm² 1.15 ± 0.05 5.00 ± 0.2 77.5 31
29-3300 7 x 0.25 mm² 1.15 ± 0.05 5.50 ± 0.2 77.5 36
29-3300 8 x 0.25 mm² 1.15 ± 0.05 6.00 ± 0.2 77.5 41
29-3300 9 x 0.25 mm² 1.15 ± 0.05 6.30 ± 0.2 77.5 44
29-3300 10 x 0.25 mm² 1.15 ± 0.05 6.30 ± 0.2 77.5 49
29-3300 12 x 0.25 mm² 1.15 ± 0.05 6.90 ± 0.2 77.5 57
29-3300 14 x 0.25 mm² 1.15 ± 0.05 7.00 ± 0.2 77.5 63
29-3300 2 x 0.34 mm² 1.30 ± 0.05 4.20 ± 0.2 54.3 19
29-3300 3 x 0.34 mm² 1.30 ± 0.05 4.30 ± 0.2 54.3 22
29-3300 4 x 0.34 mm² 1.30 ± 0.05 4.70 ± 0.2 54.3 27
29-3300 5 x 0.34 mm² 1.30 ± 0.05 5.10 ± 0.2 54.3 33
29-3300 6 x 0.34 mm² 1.30 ± 0.05 5.60 ± 0.2 54.3 40
29-3300 7 x 0.34 mm² 1.30 ± 0.05 6.20 ± 0.2 54.3 47
29-3300 8 x 0.34 mm² 1.30 ± 0.05 6.50 ± 0.2 54.3 51
29-3300 9 x 0.34 mm² 1.30 ± 0.05 7.00 ± 0.2 54.3 57
29-3300 10 x 0.34 mm² 1.30 ± 0.05 7.00 ± 0.2 54.3 63
29-3300 12 x 0.34 mm² 1.30 ± 0.05 7.30 ± 0.2 54.3 70
29-3300 14 x 0.34 mm² 1.30 ± 0.05 7.80 ± 0.2 54.3 81
29-3300 2 x 0.75 mm² 1.90 ± 0.05 5.50 ± 0.15 24.7 35
29-3300 3 x 0.75 mm² 1.90 ± 0.05 5.90 ± 0.15 24.7 44
29-3300 4 x 0.75 mm² 1.90 ± 0.05 6.50 ± 0.15 24.7 54
29-3300 5 x 0.75 mm² 1.90 ± 0.05 7.00 ± 0.15 24.7 65
29-3300 6 x 0.75 mm² 1.90 ± 0.05 7.50 ± 0.15 24.7 75
29-3300 7 x 0.75 mm² 1.90 ± 0.05 8.20 ± 0.15 24.7 86
29-3300 8 x 0.75 mm² 1.90 ± 0.05 8.70 ± 0.15 24.7 96
29-3300 9 x 0.75 mm² 1.90 ± 0.05 9.20 ± 0.15 24.7 105
29-3300 10 x 0.75 mm² 1.90 ± 0.05 9.40 ± 0.15 24.7 118
29-3300 12 x 0.75 mm² 1.90 ± 0.05 9.70 ± 0.15 24.7 132
29-3300 14 x 0.75 mm² 1.90 ± 0.05 10.50 ± 0.15 24.7 157
