Applications
These cables, which can be processed automatically by robots, ensure maximum productivity. They are suitable for luminaire wiring and can be processed reliably and without problems.

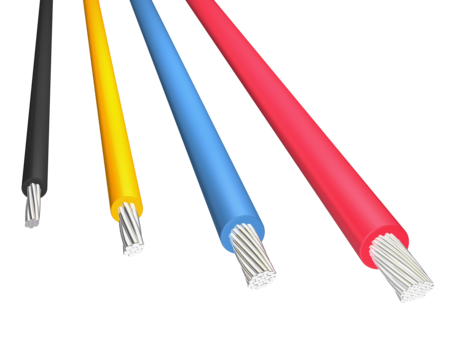

These single cores with heat resistant silicone insulation also offer a high temperature resistance. In addition to the luminaire wiring, the cables are also suitable as highly flexible device connection cables. Because of the UR approval it is possible to use those cables for the American market.
Characteristics
- Suitable for higher operating temperatures
- Design according to VDE, UL / CSA, cURus possible
- Good resistance to oils and chemicals
- RoHS and REACH compliant
Cables with high temperature resistant insulation materials and UL approval
| Coroflex | CORES | CORE | RESISTANCE (d.c. 20 °C) (max.) | CABLE WEIGHT | ||
|---|---|---|---|---|---|---|
| TYPE NO. | NO. | SIZE | DIAMETER [mm] | CONDUCTOR [mΩ/m] | approx. [g/m] | |
| 9-8021 | 1 x | 20 AWG | 1.92 | ± 0.15 | 32.9 | 8 |
| 9-8021 | 1 x | 22 AWG | 1.70 | ± 0.15 | 52.8 | 6 |
| 9-8021 | 1 x | 24 AWG | 1.55 | ± 0.15 | 89.3 | 4 |
