COROFLEX WASHDOWN COROFLEX WASHDOWN 3200 - Li31Y31Y

FDA-compliant data and connection cables with ECOLAB and IPA certificates for the food industry.

contact

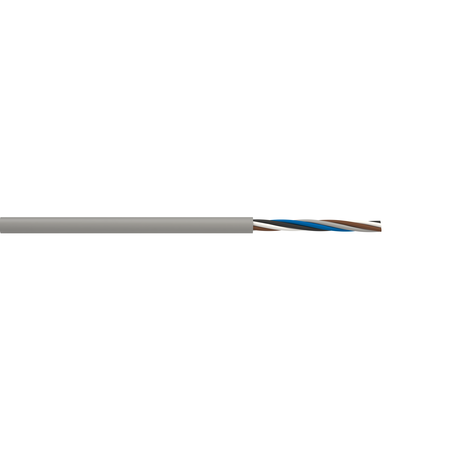

product image: COROFLEX WASHDOWN 3200 - Li31Y31Y

Applications

These data and connection cables with ECOLAB and IPA certificates are suitable for components from automation technology (examples: sensors, actuators and connectors), especially for manufacture systems for the production of food products. The sheath of these cables was specially developed for high resistance to cleaning media. As a result, these cables can be used in production areas that are subject to mechanically and thermally demanding cleaning processes (high-pressure cleaners).

Characteristics

Suitable for powerful high-temperature water jets (IPX9K)
FDA-compliant
Useable for higher operating temperatures
Very good chemical resistance to aggressive cleaning agents
Great cleanability of the line according to VDMA 12/2007
Halogen-free according to DIN VDE 0472, part 815 / IEC 60754-1
Limited suitability for mechanical requirements in energy drag chains and moving drives
RoHS and REACH compliant
LABS-free

Coroflex	CORES		CORE		OUTER SHEATH		RESISTANCE (d.c. 20 °C) (max.)	CABLE WEIGHT
TYPE NO.	NO.	SIZE	DIAMETER [mm]		DIAMETER [mm]		CONDUCTOR [mΩ/m]	approx. [g/m]
29-3200	2 x	0.25 mm²	1.15	± 0.05	4.00	± 0.2	77.5	16
29-3200	3 x	0.25 mm²	1.15	± 0.05	4.10	± 0.2	77.5	18
29-3200	4 x	0.25 mm²	1.15	± 0.05	4.40	± 0.2	77.5	22
29-3200	5 x	0.25 mm²	1.15	± 0.05	4.80	± 0.2	77.5	27
29-3200	6 x	0.25 mm²	1.15	± 0.05	5.00	± 0.2	77.5	31
29-3200	7 x	0.25 mm²	1.15	± 0.05	5.50	± 0.2	77.5	35
29-3200	8 x	0.25 mm²	1.15	± 0.05	6.00	± 0.2	77.5	41
29-3200	9 x	0.25 mm²	1.15	± 0.05	6.30	± 0.2	77.5	44
29-3200	10 x	0.25 mm²	1.15	± 0.05	6.30	± 0.2	77.5	48
29-3200	12 x	0.25 mm²	1.15	± 0.05	6.90	± 0.2	77.5	56
29-3200	14 x	0.25 mm²	1.15	± 0.05	7.00	± 0.2	77.5	62
29-3200	2 x	0.34 mm²	1.30	± 0.05	4.20	± 0.2	54.3	18
29-3200	3 x	0.34 mm²	1.30	± 0.05	4.30	± 0.2	54.3	22
29-3200	4 x	0.34 mm²	1.30	± 0.05	4.70	± 0.2	54.3	27
29-3200	5 x	0.34 mm²	1.30	± 0.05	5.10	± 0.2	54.3	33
29-3200	6 x	0.34 mm²	1.30	± 0.05	5.60	± 0.2	54.3	39
29-3200	7 x	0.34 mm²	1.30	± 0.05	6.20	± 0.2	54.3	46
29-3200	8 x	0.34 mm²	1.30	± 0.05	6.50	± 0.2	54.3	50
29-3200	9 x	0.34 mm²	1.30	± 0.05	7.00	± 0.2	54.3	57
29-3200	10 x	0.34 mm²	1.30	± 0.05	7.00	± 0.2	54.3	62
29-3200	12 x	0.34 mm²	1.30	± 0.05	7.30	± 0.2	54.3	69
29-3200	14 x	0.34 mm²	1.30	± 0.05	7.80	± 0.2	54.3	81
29-3200	2 x	0.75 mm²	1.90	± 0.05	5.50	± 0.15	24.7	34
29-3200	3 x	0.75 mm²	1.90	± 0.05	5.90	± 0.15	24.7	43
29-3200	4 x	0.75 mm²	1.90	± 0.05	6.50	± 0.15	24.7	53
29-3200	5 x	0.75 mm²	1.90	± 0.05	7.00	± 0.15	24.7	65
29-3200	6 x	0.75 mm²	1.90	± 0.05	7.50	± 0.15	24.7	74
29-3200	7 x	0.75 mm²	1.90	± 0.05	8.20	± 0.15	24.7	86
29-3200	8 x	0.75 mm²	1.90	± 0.05	8.70	± 0.15	24.7	96
29-3200	9 x	0.75 mm²	1.90	± 0.05	9.20	± 0.15	24.7	105
29-3200	10 x	0.75 mm²	1.90	± 0.05	9.40	± 0.15	24.7	118
29-3200	12 x	0.75 mm²	1.90	± 0.05	9.70	± 0.15	24.7	132
29-3200	14 x	0.75 mm²	1.90	± 0.05	10.50	± 0.15	24.7	156
